how hard can it be?

Posted by Expat Stu <iframe src='https://members5.boardhost.com/classicbikemart/info/user=Expat+Stu' width='330' height='300' border=0 style='border:none;'> on April 19, 2026, 3:53 pm

Right, I have rigged a slave battery to try and get the brake light switch to work.

The bulb lights all the time until I press the pedal and then the light goes out.

All I have is (+) to the switch then (-) to the bulb, which is earthed.

It is a cable with the switch built in.

I am not an electrician, what am I doing wrong?

How can I reverse this action?

Re: how hard can it be?

Posted by Andy C <iframe src='https://members5.boardhost.com/classicbikemart/info/user=Andy+C' width='330' height='300' border=0 style='border:none;'> on April 19, 2026, 4:29 pm, in reply to "how hard can it be?"

Just thinking out loud, what happens if you pull the cable from the other end - could it be that you have the cable the wrong way around?

Just a thought.

Who needs a signature anyway......

Re: how hard can it be?

Posted by Expat Stu <iframe src='https://members5.boardhost.com/classicbikemart/info/user=Expat+Stu' width='330' height='300' border=0 style='border:none;'> on April 19, 2026, 5:52 pm, in reply to "Re: how hard can it be?"

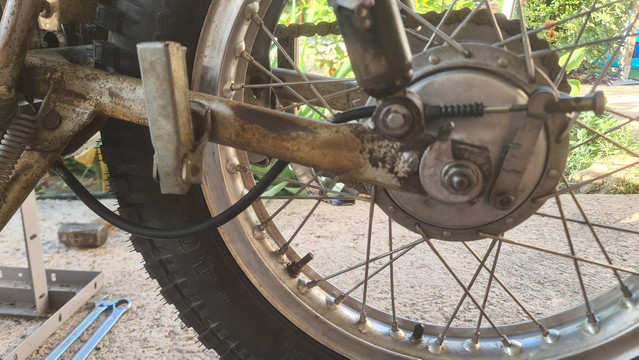

Ah! Clear thinking Andy C but it only fits one way - with the adjuster for the rear drum lever

<a href="https://ibb.co/8gN0S6xj"><img src="https://i.ibb.co/b5QP8zvr/cable.jpg" border=0></a>

This cable has now been shortened...

Re: how hard can it be?

Posted by 6TDen <iframe src='https://members5.boardhost.com/classicbikemart/info/user=6TDen' width='330' height='300' border=0 style='border:none;'> on April 19, 2026, 6:22 pm, in reply to "Re: how hard can it be?"

As Andy says, it all points to the switch being back to front. Try turning it around an see what happens.
Den?

Re: how hard can it be?

Posted by Will <iframe src='https://members5.boardhost.com/classicbikemart/info/user=Will' width='330' height='300' border=0 style='border:none;'> on April 19, 2026, 6:43 pm, in reply to "Re: how hard can it be?"

This might sound completely daft but as a fully qualified Grade A1 auto electrical numpy I have to ask....
If the switch can only be fitted one way round can you reverse the wring at the bulb holder?

Re: how hard can it be?

Am I missing something but I can’t see the switch in the picture unless it’s that funny looking cam thing on the rear wheel.
Den

Re: how hard can it be?

Posted by the old one <iframe src='https://members5.boardhost.com/classicbikemart/info/user=the+old+one' width='330' height='300' border=0 style='border:none;'> on April 19, 2026, 7:46 pm, in reply to "Re: how hard can it be?"

ok , as per what andy stated , ay present , you are pulling the cable at the brake petel end , and this is turning the switch "off"

try disconnecting at bothe the lever and the rear brake , then try PULLING at the wheel end , see if the switch works then

Re: how hard can it be?

Wonder of the switch has been incorrectly fitted to the cable ?

You say you shortened it - did you take the switch off the cable when you shortened it?

Who needs a signature anyway......

Re: how hard can it be?

Posted by Expat Stu <iframe src='https://members5.boardhost.com/classicbikemart/info/user=Expat+Stu' width='330' height='300' border=0 style='border:none;'> on April 20, 2026, 7:08 am, in reply to "Re: how hard can it be?"

It was custom made by venhills, so the problem is more likely to be my wiring. I will take a photo of the switch later

Re: how hard can it be?

Posted by geoff the bonnie <iframe src='https://members5.boardhost.com/classicbikemart/info/user=geoff+the+bonnie' width='330' height='300' border=0 style='border:none;'> on April 20, 2026, 7:58 am, in reply to "Re: how hard can it be?"

Looks like Venhill has made you a normally closed switch that operates to open when you operate it.

Re: how hard can it be?

Posted by the old one <iframe src='https://members5.boardhost.com/classicbikemart/info/user=the+old+one' width='330' height='300' border=0 style='border:none;'> on April 20, 2026, 8:50 am, in reply to "Re: how hard can it be?"

or he has gone past the "switch" point settings , and it is in "on position at rest" , hemce suggesting he pulls inner cable at other end , to put switch contacts in rest / off position

Re: how hard can it be?

Posted by Andy C <iframe src='https://members5.boardhost.com/classicbikemart/info/user=Andy+C' width='330' height='300' border=0 style='border:none;'> on April 20, 2026, 12:56 pm, in reply to "Re: how hard can it be?"

Could be that Venhill cocked up - might be worth contacting them. As Geoff says the switch appears to be normally closed instead of open.

Who needs a signature anyway......

Re: how hard can it be?

Posted by the old one <iframe src='https://members5.boardhost.com/classicbikemart/info/user=the+old+one' width='330' height='300' border=0 style='border:none;'> on April 20, 2026, 1:08 pm, in reply to "Re: how hard can it be?"

as I said earlier , its possible that the position of the cable is holding the switch on , then when pressed , the cable is passing the switch contacts and turning off
as posted before , remove cable at both ends and pull at brake drum end till off (bulb), then pull at lever end to see if it goes on

I would be very suprised if venhill had fitted a normaly on switch , its more likely that the cable has been reversed or set in wrong place

a question

Posted by the old one <iframe src='https://members5.boardhost.com/classicbikemart/info/user=the+old+one' width='330' height='300' border=0 style='border:none;'> on April 20, 2026, 1:28 pm, in reply to "Re: how hard can it be?"

when you wired the light up , which way did you do it
did you run an earth wire to the buld , then a liver wire to the switch , and live from the swith to the bulb

OR did you run a live wire to the bulb , and a earth to and from the switch

either would in effect work , but may cause some problens with switching if you were switching earth off and on

and a second question , is this a double filliment bulb , or do you have any other bulbs in that light fitting ,

are any of the bulbs LED

Re: how hard can it be?

Fair comments old one.

I wonder how the switch senses that it has to switch from off to on and vice verca?

Who needs a signature anyway......

Re: how hard can it be?

Posted by Expat Stu <iframe src='https://members5.boardhost.com/classicbikemart/info/user=Expat+Stu' width='330' height='300' border=0 style='border:none;'> on April 22, 2026, 8:37 am, in reply to "Re: how hard can it be?"

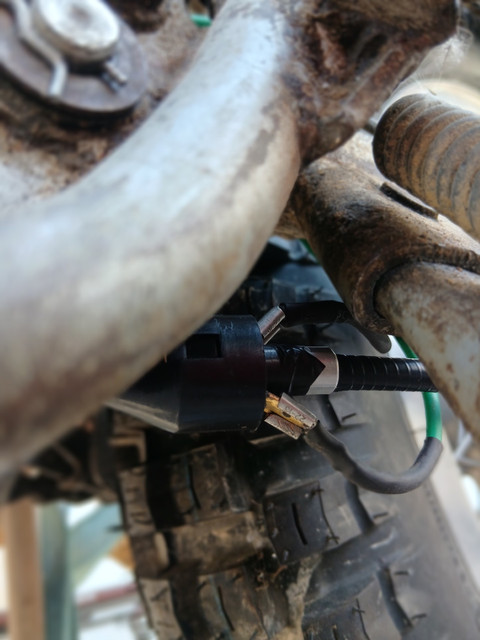

sorry for the delay, life etc...in situ

remove duplicate email lines

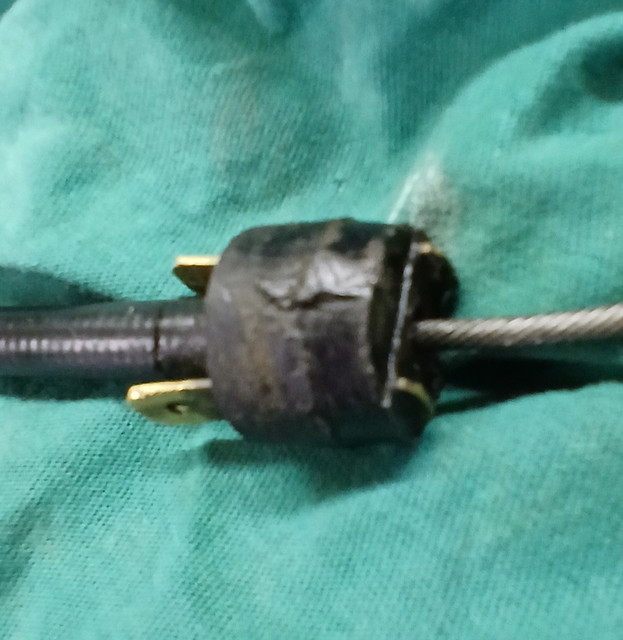

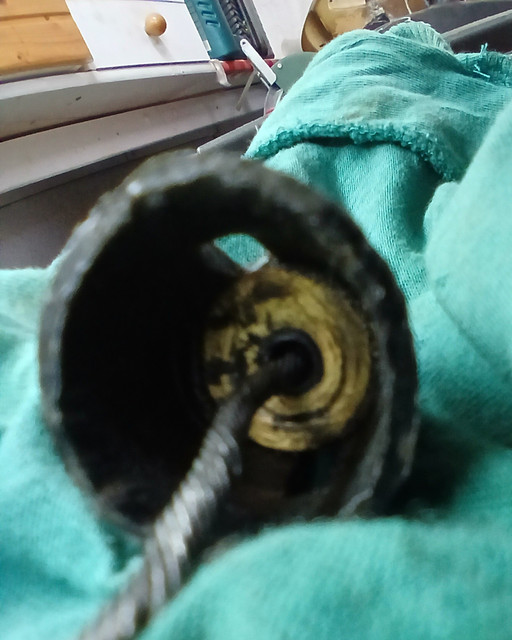

then I found the old cable and pulled the switch apart:

so it looks to me that the switch is permantly "on" until the cable moves and breaks the circuit - but how does that cause the bulb to light? there are 2 festoon bulbs, one rear light and a seperate one for the brake. I ran a (+) to the switch, then from the other side to the bulb and the bulb holder is earthed.

Re: how hard can it be?

Posted by Expat Stu <iframe src='https://members5.boardhost.com/classicbikemart/info/user=Expat+Stu' width='330' height='300' border=0 style='border:none;'> on April 22, 2026, 9:09 am, in reply to "Re: how hard can it be?"

not LEDs

Re: how hard can it be?

Posted by the old one <iframe src='https://members5.boardhost.com/classicbikemart/info/user=the+old+one' width='330' height='300' border=0 style='border:none;'> on April 22, 2026, 9:18 am, in reply to "Re: how hard can it be?"
